Power: 140W
Max. Head: 10M
Max. Flow: 1.8m³/h
Inlet x Outlet: 3/4" x 3/4"
Body length: 162mm
Applications:
Low noise automatic booster pump, suitable for cold and hot water pressurization in small and medium-sized apartment, such as: water supply low pressure in roof tank, low pressure of solar water outlet, gas water heater won’t turn on, low tap water pressure etc.
Operating Conditions:
Ambient Temperature: 0℃~40℃
Ambient Humidity: 95%
Liquid Temperature: -10℃~95℃
Ambient temperature must be lower than liquid temperature, in order to avoid condensate water produced in the interior of stator
Liquid: Clean, non-corrosive and non-explosive liquids, without any particle, fiber or mineral oil.
Water/Glycol mixtures max. mixing ratio should be 1:1
Motor and Pump
Copper winding
Built-in thermal protector
Ceramic shaft
Ceramic bearing
PP impeller
Male tab connection to the cable
Options on request
Different cable length and plug
Brass flow meter can be optional
Different voltage and frequency

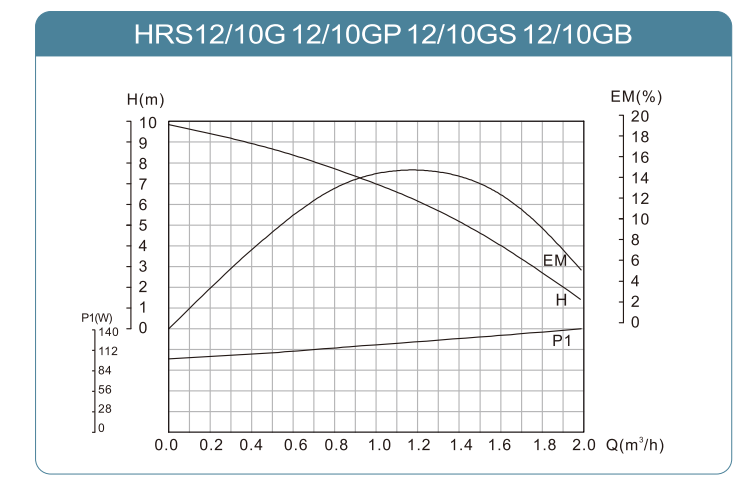

Performance Curves :
Technical Data :
| Model | Power | Max.Flow | Max.Head | Voltage | Material of pump body | Dimension(mm) | Weight | |||||||
| (W) | (m³/h) | (m) | 220V/ 50Hz | 220V/ 60Hz | 127V/ 60Hz | Cast Iron | Brass | Stainless steel | L | B | H | G | (Kg) | |
| HRS12/10G | 140 | 1.8 | 10 | ★ | ★ | ★ | ★ | ★ | ★ | 162 | 103.5 | 142 | 3/4" | 2.8 |
| HRS12/10GP | 2.6 | |||||||||||||
| HRS12/10GS | 2.8 | |||||||||||||
| HRS12/10GB | 3.0 | |||||||||||||
Installation Dimension :
